Heavy Duty Red Container Reach Stacker 45000kgs Load Capacity

Xiamen Sealand Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

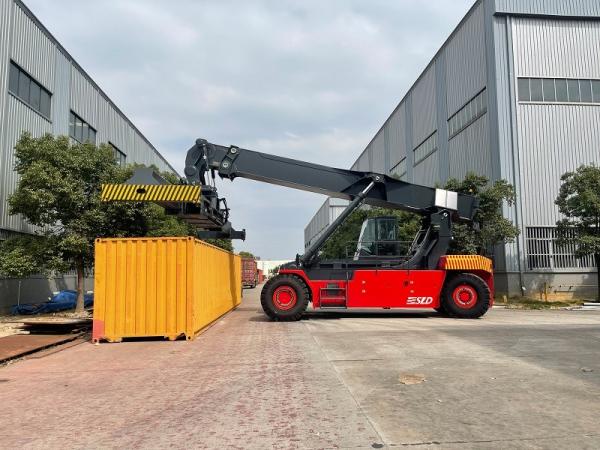

Heavy Duty Red Container Reach Stacker 45000kgs Load Capacity

Brand Name : SLD

Place of Origin : China

Certification : CE; ISO; FDA

MOQ : 1 unit

Price : Negotiation

Packaging Details : Nude

Delivery Time : 30 working days

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Load Capacity : 45000kgs

Spreader Type : Handling ISO 20'-40' Containers

Transmission : ZF 5WG261 AUTO

Service Weight : 71400 Kgs (unload)

Engine : CUMMINS QSM11-330

New Or Used : New

Steering Axle : Kessler L102

Color : Red

Contact Now

Product Description:

The drive axle of the Container Reach Stacker is a Kessler D102PL341, which provides excellent traction and power to move heavy containers quickly and safely. The steering axle is a Kessler L102, which allows for precise and responsive control of the machine. With these high-quality components, the Container Reach Stacker is capable of handling heavy loads with ease, making it a reliable and efficient choice for any cargo handling operation.

The Container Reach Stacker is finished in a striking red color, which not only looks great but also makes it easy to spot on a busy worksite. Whether you are moving containers on a shipping dock or stacking them in a storage yard, the Container Reach Stacker is a reliable and efficient choice that will get the job done quickly and safely.

Overall, the Container Reach Stacker is an excellent choice for anyone looking for a reliable and efficient cargo container stacker. With its powerful transmission, specialized spreader type, and high-quality drive and steering axles, this machine is capable of handling heavy loads with ease. And with its striking red finish, it is sure to stand out on any worksite. So if you need a reliable and efficient container reach stacker, look no further than the Container Reach Stacker.

Technical Parameters:

CHARACTERISTICS
Model SLDR450
Power unit Diesel
Operation type Driver seated
Load capacity (L1, L2, L3) Q (kg) 45000/31000/16000
Load centre, first row (L1) c (mm) 1800
Load centre, second row (L2) C (mm) 3860
Load centre, third row (L3) C (mm) 6400
Axle centre to spreader center (L1-1/2 high) x (mm) 2800
Wheelbase y (mm) 6400
DIMENSIONS
Boom lift angle, raise/lowered α/β(/°) 61/0
Height boom lowered h1 (mm) 4945
Lift height (L1, L2, L3) h3 (mm) 15900/14100/11350
Height, boom extended h4 (mm) 19000
Height of cabin h6 (mm) 3900
Height, operator's seat h7 (mm) 2840
Towing coupling height h10 (mm) 600
Twist lock height lowered h13 (mm) 1495
Overall length with spreader l1 (mm) 11618
Overall length l2 (mm) 8410
Overall width b1/b2 (mm) 4180/3400
Width of spreader 20'/40' b3 (mm) 6050/12150
Ground clearance min. m1 (mm) 345
Ground clearance, centre of wheelbase m2 (mm) 350
Stacking aisle 20' containers Ast (mm) 10225
Stacking aisle 40' containersTurning radius Ast (mm) 13050
Min. pivoting point distance Wa (mm) 8605
Min. pivoting point distance b13 (mm) 3400
Wheelspan, front wheels b10 (mm) 3030
Wheelspan, rear wheel b11 (mm) 2786
WEIGHT
Weight (unladen/laden) kg 71400/116400
Load on drive axle (unladen/laden) kg 36400/101900
Load on steering axle (unladen/laden) kg 35000/14500
PERFORMANCE
Travelling speed (unladen/laden) Km/h 25/21
Gradeability (unladen/laden) % 30/28.8
Tractive force (unladen) Kn 408
Lifting speed (unladen/laden) m/s 0.39/0.28
Lowering speed (unladen/laden) m/s 0.39/0.39
CABIN
Movable closed cabin
Equipped with A/C, cooling/heating functions
Noise level at driver's seat dBA 74
ENGINE
Brand CUMMINS
Type QSM11
Cylinder no./displacement 6/10820 cm3
Rated power @ rated speed 250kw @ 2100rpm
Max. torque 1674Nm@ 1500rpm
Rated current of alternator 150A
Battery 24V
TRANSMISSION
Brand ZF/5WG261 AUTO
Type Auto-shift/interlock
Clutch type Torque converter
Gear no. 5F/3R
TYRES
Drive wheels 18.00-25 40PR
Steering wheels 18.00-25 40PR
Type Pneumatic
Pressure 10 bar
Quantity, front/rear 4/2
TANKS CAPACITY
Hydraulic oil tank L 800
Fuel tank L 500
DRIVE AXLE
Brand Kessler/Germany
Model D102PL341
STEERING AXLE
Brand Kessler/Germany
Model L102
Steering Double action cylinder
BRAKE SYSTEM
Service brake Hydraulic wet-disc
Parking brake Electric released disc brake, enabled when power off
HYDRAULIC SYSTEM
Twin piston pump
Max. pressure: 310 bar
Load sensing system
Hydraulic cooler with electric motor
Separate brake oil tank
BOOM
2x Dual action lift cylinders
1x Dual action extension cylinder
SPREADER
Handling ISO 20'-40' containers
2x damping cylinder 2x gearbox & brake system
Brand SP45
Rotate degrees -105°/+195°
Sideshift -800/+800mm
TRUCK SAFETIES
Error display system
Counter system for containers
Weighing system (low precision)
Electric anti-overload system
Full can-bus control system
Direction gearshift interlock
Parking brake enabled when power off
Seat switch
SPREADER SAFETIES
Locking/unlocking only after correct landing
Lifting/lowering only when the 4 twistlocks on same position
Anticollision rotation limit switch

Applications:

The SLD Container Reach Stacker is packed and delivered in a nude packaging, ensuring that it arrives in excellent condition. The delivery time for this product is 30 working days, and it can be paid for using L/C or T/T. The supply ability for this product is 10 units per month, making it an excellent choice for large-scale operations.

The Container Reach Stacker comes with a ZF 5WG261 AUTO transmission, which ensures that it is easy to operate and maneuver. It is also equipped with a powerful CUMMINS QSM11-330 engine, which provides the machine with the necessary power to handle heavy loads. The color of the product is red, making it easy to spot in busy container yards.

The SLD Container Reach Stacker is a new product, meaning that it is brand new and has not been used before. This makes it an excellent choice for businesses that want a reliable and efficient machine that is built to last. It is perfect for container transportation and handling scenarios, ensuring that containers are moved quickly and efficiently. Overall, the SLD Container Reach Stacker is an excellent investment for businesses that need a reliable and efficient machine for container handling.

Customization:

Brand Name: SLD

Place of Origin: China

Certification: CE; ISO; FDA

Minimum Order Quantity: 1 unit

Price: Negotiation

Packaging Details: Nude

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 10 units per month

Performance: Quality Product

Color: Red

Steering Axle: Kessler L102

Service Weight: 71400 Kgs (unload)

Spreader Type: Handling ISO 20'-40' Containers

This Container Reach Stacker can be customized to meet your specific needs for container movement, lifting and unloading. With a quality product performance and certification including CE, ISO and FDA, it is a reliable and efficient solution for your container handling needs. The minimum order quantity is 1 unit, with pricing negotiable based on your customization requirements. The packaging details are nude, with delivery time estimated at 30 working days. Payment terms accepted include L/C and T/T, and the supply ability is 10 units per month. The Container Reach Stacker comes in a striking red color, with a Kessler L102 steering axle, and a service weight of 71400 Kgs when unloaded. The spreader type is designed for handling ISO 20'-40' Containers, making it a versatile and valuable addition to your operations.
