Red Container Handling Stacker Kessler L102 Steering Axle For ISO 20-40 Containers

Xiamen Sealand Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

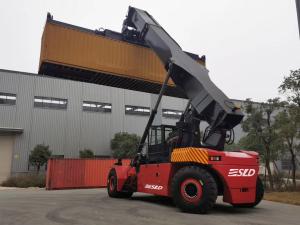

Red Container Handling Stacker Kessler L102 Steering Axle For ISO 20-40 Containers

Brand Name : SLD

Place of Origin : China

Certification : CE; ISO; FDA

MOQ : 1 unit

Price : Negotiation

Packaging Details : Nude

Delivery Time : 30 working days

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Color : Red

Steering Axle : Kessler L102

Load Capacity : 45000kgs

Service Weight : 71400 Kgs (unload)

New Or Used : New

Spreader Type : Handling ISO 20'-40' Containers

Performance : Quality Product

Drive Axle : Kessler D102PL341

Contact Now

Product Description:

This Container Cargo Stacker boasts a Kessler D102PL341 drive axle and a ZF 5WG261 AUTO transmission, ensuring excellent performance and reliability. Whether you're looking to handle ISO 20'-40' containers, this Container Handling Stacker is up to the task.

And with its new condition, you can trust that this product will deliver the top-notch performance you need for your container handling operations.

Invest in our Container Reach Stacker today and experience the peace of mind that comes with a quality product that's built to last.

Technical Parameters:

CHARACTERISTICS
Model SLDR450
Power unit Diesel
Operation type Driver seated
Load capacity (L1, L2, L3) Q (kg) 45000/31000/16000
Load centre, first row (L1) c (mm) 1800
Load centre, second row (L2) C (mm) 3860
Load centre, third row (L3) C (mm) 6400
Axle centre to spreader center (L1-1/2 high) x (mm) 2800
Wheelbase y (mm) 6400
DIMENSIONS
Boom lift angle, raise/lowered α/β(/°) 61/0
Height boom lowered h1 (mm) 4945
Lift height (L1, L2, L3) h3 (mm) 15900/14100/11350
Height, boom extended h4 (mm) 19000
Height of cabin h6 (mm) 3900
Height, operator's seat h7 (mm) 2840
Towing coupling height h10 (mm) 600
Twist lock height lowered h13 (mm) 1495
Overall length with spreader l1 (mm) 11618
Overall length l2 (mm) 8410
Overall width b1/b2 (mm) 4180/3400
Width of spreader 20'/40' b3 (mm) 6050/12150
Ground clearance min. m1 (mm) 345
Ground clearance, centre of wheelbase m2 (mm) 350
Stacking aisle 20' containers Ast (mm) 10225
Stacking aisle 40' containersTurning radius Ast (mm) 13050
Min. pivoting point distance Wa (mm) 8605
Min. pivoting point distance b13 (mm) 3400
Wheelspan, front wheels b10 (mm) 3030
Wheelspan, rear wheel b11 (mm) 2786
WEIGHT
Weight (unladen/laden) kg 71400/116400
Load on drive axle (unladen/laden) kg 36400/101900
Load on steering axle (unladen/laden) kg 35000/14500
PERFORMANCE
Travelling speed (unladen/laden) Km/h 25/21
Gradeability (unladen/laden) % 30/28.8
Tractive force (unladen) Kn 408
Lifting speed (unladen/laden) m/s 0.39/0.28
Lowering speed (unladen/laden) m/s 0.39/0.39
CABIN
Movable closed cabin
Equipped with A/C, cooling/heating functions
Noise level at driver's seat dBA 74
ENGINE
Brand CUMMINS
Type QSM11
Cylinder no./displacement 6/10820 cm3
Rated power @ rated speed 250kw @ 2100rpm
Max. torque 1674Nm@ 1500rpm
Rated current of alternator 150A
Battery 24V
TRANSMISSION
Brand ZF/5WG261 AUTO
Type Auto-shift/interlock
Clutch type Torque converter
Gear no. 5F/3R
TYRES
Drive wheels 18.00-25 40PR
Steering wheels 18.00-25 40PR
Type Pneumatic
Pressure 10 bar
Quantity, front/rear 4/2
TANKS CAPACITY
Hydraulic oil tank L 800
Fuel tank L 500
DRIVE AXLE
Brand Kessler/Germany
Model D102PL341
STEERING AXLE
Brand Kessler/Germany
Model L102
Steering Double action cylinder
BRAKE SYSTEM
Service brake Hydraulic wet-disc
Parking brake Electric released disc brake, enabled when power off
HYDRAULIC SYSTEM
Twin piston pump
Max. pressure: 310 bar
Load sensing system
Hydraulic cooler with electric motor
Separate brake oil tank
BOOM
2x Dual action lift cylinders
1x Dual action extension cylinder
SPREADER
Handling ISO 20'-40' containers
2x damping cylinder 2x gearbox & brake system
Brand SP45
Rotate degrees -105°/+195°
Sideshift -800/+800mm
TRUCK SAFETIES
Error display system
Counter system for containers
Weighing system (low precision)
Electric anti-overload system
Full can-bus control system
Direction gearshift interlock
Parking brake enabled when power off
Seat switch
SPREADER SAFETIES
Locking/unlocking only after correct landing
Lifting/lowering only when the 4 twistlocks on same position
Anticollision rotation limit switch

Applications:

This Container Reach Stacker is manufactured in China and has obtained CE, ISO, and FDA certifications, ensuring its quality and durability. It is a brand new product that can be purchased with a minimum order quantity of 1 unit. The price is negotiable, and the packaging details are nude.

The Container Reach Stacker is perfect for a variety of application occasions and scenarios, including:

  • Ports: This machine is ideal for loading and unloading containers from ships at the port. Its powerful engine and transmission system ensure that containers can be moved quickly and efficiently.
  • Warehouses: The Container Reach Stacker is perfect for moving containers around in warehouses. Its steering axle system makes it easy to maneuver in tight spaces, and its load capacity allows it to handle multiple containers at once.
  • Construction sites: This machine is also useful on construction sites where heavy containers need to be moved from one location to another. Its powerful engine and transmission system make it a reliable choice for these types of tasks.

The SLD Container Reach Stacker has a delivery time of 30 working days and can be purchased using either L/C or T/T payment terms. The supply ability is 10 units per month, and all units are brand new. The ZF 5WG261 AUTO transmission system ensures smooth operation, while the Kessler L102 steering axle system improves maneuverability.

Customization:

SLD Container Reach Stacker is a quality product that provides excellent performance in handling ISO 20'-40' containers.

Our Container Cargo Stacker is manufactured in China and comes with CE, ISO, and FDA certifications. The minimum order quantity for this product is 1 unit, and the price is negotiable. The packaging details are nude, and the delivery time is 30 working days.

We accept L/C and T/T as payment terms, and our supply ability is 10 units per month. The Container Unloading Stacker has a service weight of 71400 Kgs (unload) and is equipped with a Kessler D102PL341 drive axle and a powerful CUMMINS QSM11-330 engine.
