Home > Empty Container Handler >

8000kgs Load 20ft 40ft Empty Container Handler

Xiamen Sealand Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

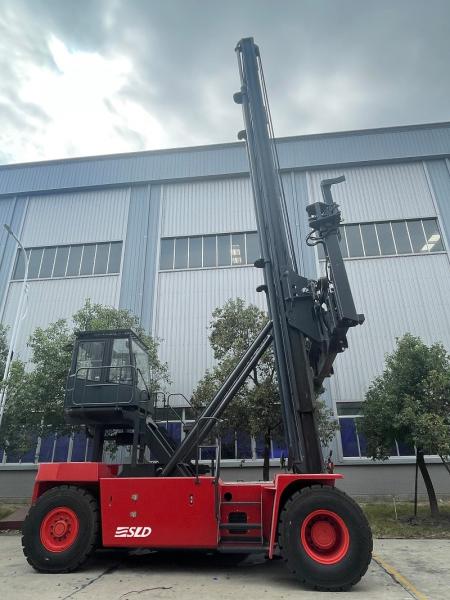

8000kgs Load 20ft 40ft Empty Container Handler

Brand Name : SLD

Place of Origin : China

Certification : ISO, CE

MOQ : 1 unit

Price : Negotiable price USD 0.08-0.15/Piece

Packaging Details : Nude

Delivery Time : 30 working days

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Spreader Type : Handling ISO 20'-40' Containers

New Or Used : New

Performance : Quality Product

Warranty : 1 Year

Color : Red

Engine : CUMMINS QSM11-330

Service Weight : 71400 Kgs (unload)

Drive Axle : Kessler D102PL341

Contact Now

Product Description:

Technical Parameters:

CHARACTERISTICS
Model ECH80/7
Load capacity 8 tons
Maximum stacking layer 7
Lifting speed (Laden/Unladen) m/s 0.55/0.60
Lowering speed (Laden/Unladen) m/s 0.60/0.60
Travel speed (Laden/Unladen) Km/h 25/27
Climbing ability % 30
Tractive force KN 107.5
DIMENSIONS
Wheelbase y(mm) 4020
Height of mast,lowered h1 (mm) 11091
Tilt angle (Forward/Backward) Degree 3/4
Height of mast,extended h4 (mm) 19204
Height of cabin h6 (mm) 4326
Height, operator's seat h7 (mm) 3206
Twistlock height lowered h13 (mm) 2290
Maximum twistlock height h3 (mm) 18600
Overall length l1 (mm) 6450
Length to spreader face l2 (mm) 6277
Overall width b1/b2 (mm) 3627/2398
Width of spreader 20'/40' b3 (mm) 6050/12150
Turning radius Wa (mm) 5700
Wheelspan,front wheels b10 (mm) 2880
Wheelspan,rear wheels b11 (mm) 2068
WEIGHTS
Service weight kg 33800
Axle load,front/rear kg 29050/10750
Axle without load,front/rear b13 (mm) 20100/13700
ENGINE
Engine manufacturer/type Cummins/QSB6.7
Cylinder number/Displacement 6/6700cm3
Rated power 129KW@2200rpm
Maximun torque 800NM@1500rpm
Rated current of alternator 70A
Battery 24V(2x12/110)
TRANSMISSION
Manufacturer/type ZF/3WG211AUTO
Clutch type Torque converter
Transmission Auto-shift/interlock
Gear number 3F/3R
BRAKESYSTEM
Service brake Wet-disc
Parking brake Brake enabled when power off
DRIVE AXLE
Manufacturer Kessler/Germany
Type D81PL478-NLB
STEER AXLE
Manufacturer Self-made
Type Z16A1
Steering type-Single cylinder Double action cylinder
TYRES
Drive wheels 14.00-24 24PR
Steering wheels 14.00-24 24PR
Type Pneumatic
Pressure 10 bar
Quantity, front/rear 4/2

Applications:

Empty Container Handler - SLD

Empty Container Handler is a highly efficient and reliable product designed and manufactured by SLD, a well-known brand in China. With ISO and CE certifications, this product guarantees high quality and safety standards.

Designed for handling ISO 20'-40' containers, this product is perfect for various container processing systems. It is ideal for container depopulation managers, container transportation companies, and other industries that require efficient and safe container handling.

Product Attributes:
  • Brand Name: SLD
  • Place of Origin: China
  • Certification: ISO, CE
  • Minimum Order Quantity: 1 unit
  • Price: Negotiable price USD 0.08-0.15/Piece
  • Packaging Details: Nude
  • Delivery Time: 30 working days
  • Payment Terms: L/C, T/T
  • Supply Ability: 10 units per month
  • Spreader Type: Handling ISO 20'-40' Containers
  • New Or Used: New
  • Warranty: 1 Year
  • Drive Axle: Kessler D102PL341
  • Engine: CUMMINS QSM11-330
Application:

The Empty Container Handler by SLD is a versatile product that can be used in various industries and scenarios. Some of its common applications and scenarios include:

  • Container Processing System: As mentioned earlier, this product is perfect for container processing systems. It can efficiently handle empty containers and help in streamlining the overall process.
  • Container Depopulation Manager: This product is ideal for those who manage container depopulation. It can handle empty containers with ease, making the process faster and more efficient.
  • Container Transportation: For companies involved in container transportation, the Empty Container Handler by SLD is a must-have product. It can handle empty containers and make the transportation process smoother and safer.
  • Container Handling: Whether it's a port, warehouse, or any other facility that deals with containers, this product can be a great addition. It can handle empty containers of different sizes and make the handling process more efficient.

Overall, the Empty Container Handler by SLD is a highly versatile and essential product for various industries and scenarios. Its high-quality and reliable performance make it a popular choice among businesses.

Customization:

SLD Empty Container Handler Customization Service

Brand Name: SLD

Place of Origin: China

Certification: ISO, CE

Minimum Order Quantity: 1 unit

Price: Negotiable price USD 0.08-0.15/Piece

Packaging Details: Nude

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 10 units per month

Drive Axle: Kessler D102PL341

Service Weight: 71400 Kgs (unload)

Engine: CUMMINS QSM11-330

Steering Axle: Kessler L102

Load Capacity: 45000kgs

Introducing the SLD Empty Container Handler - your ultimate Container Depopulation Manager. Made in China with the highest quality standards, our product is certified with ISO and CE, ensuring top-notch performance and reliability. With a minimum order quantity of just 1 unit, our customization service allows you to tailor the machine to your specific needs.

Our price is negotiable, ranging from USD 0.08 to 0.15 per piece, depending on your requirements. The packaging is kept simple and efficient - nude, ensuring easy transportation and storage. With a delivery time of 30 working days, we strive to provide timely and efficient service to our customers.

We offer flexible payment terms of L/C and T/T, making it convenient for you to complete the transaction. Our supply ability is 10 units per month, ensuring a steady supply of our product.

The SLD Empty Container Handler is equipped with a powerful Kessler D102PL341 drive axle and a CUMMINS QSM11-330 engine, capable of handling heavy loads. The Kessler L102 steering axle ensures smooth and precise maneuvering of the machine. With a service weight of 71400 kgs (unload) and a load capacity of 45000kgs, our product is designed to efficiently manage empty containers with ease.

Say goodbye to the hassle of empty container management with the SLD Empty Container Handler. Trust us to provide the best Container Processing System for your business needs. Contact us now for more information on our Vacant Container Management solutions and Empty Container Transfer capabilities.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is SLD.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: What certifications does this product have?
    A: This product is certified with ISO and CE.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 unit.
  • Q: What is the price range for this product?
    A: The price for this product is negotiable, ranging from USD 0.08 to 0.15 per piece.
  • Q: How is this product packaged for delivery?
    A: This product is packaged in a nude form.
  • Q: How long is the delivery time for this product?
    A: The delivery time for this product is 30 working days.
  • Q: What are the payment terms for this product?
    A: The payment terms for this product are L/C and T/T.
  • Q: What is the supply ability for this product?
    A: The supply ability for this product is 10 units per month.
